AMS Worldwide proudly serves as the exclusive India partner of PNC Systems, a global leader in precision-engineered gas and chemical delivery technologies. This collaboration allows us to bring world-class solutions to India’s semiconductor, solar, pharmaceutical, and advanced R&D sectors, ensuring unmatched process control, safety, and reliability.
From ultra-high purity gas cabinets to automated chemical systems and exhaust treatment units, every solution we offer is built to meet stringent international standards. With deep industry knowledge and cutting-edge technology, we deliver complete ecosystems designed to support high-performance, high-purity operations at every level.
BSGS Configuration: BULK Packaging GAS → BSGS → GC
BSGS products are mainly used in high-capacity special gas transportation systems. The gas source is stored in large capacity special gas cylinders, transported through BSGS supply cabinets to the special gas pipeline network, and then transported from the special gas pipeline network to various usage points through VMB. Its core technology lies in the optional steel cylinder heating device and J-T heater according to the process flow requirements, which can be independently heated and controlled in one and two stages, stably conveying special gases for large capacity packaging (Y bottles, T bottles, ISO Tank, torpedo tube vehicle).

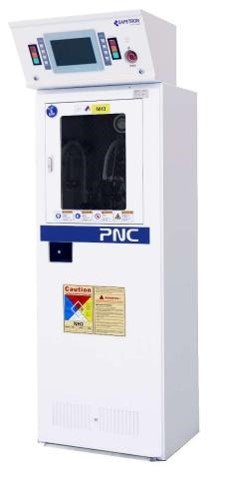

GC Configuration: GC Cylinder / BSGS → GS → VMB
GC products are mainly used in various gas transportation systems, such as gas storage and management equipment for corrosive, toxic, flammable, and self igniting gases. It can achieve extremely high safety, stability, controllability, etc. in the gas supply process. Its core technology lies in the configuration of pressure reducing devices, standard functions such as pressure detection, automatic switching, automatic blowing, leakage detection, emergency cut-off, etc., according to the process flow requirements, to stably, safely, and cleanly transport special gases.
Manual VMB Configuration: GC → Mannual VMB → Hook Up
Auto VMB Configuration: GC → Auto VMB → Hook Up
VMB products are mainly designed for gas source diversion and are suitable for supplying multiple gas equipment with one or more gas sources. The transportation process does not affect the purity and water oxygen content of the gas source. VMB uses a three-way valve and four-way valve design, which makes the cabinet more compact, reduces the occupied area, and is more conducive to overall planning. The demand for fresh air and exhaust is small, and it saves energy and is environmentally friendly.

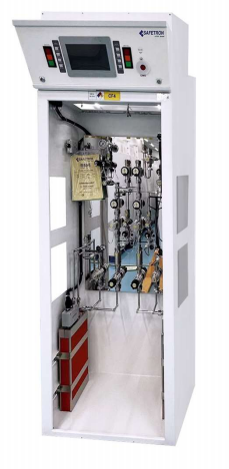

BSGR Configuration: Bulk Packaging → BSGR → GR
BSGR products are mainly used in high-capacity inert gas conveying systems. The gas source is stored in large capacity inert gas cylinders, transported through BSGR supply cabinets to the inert gas pipeline network, and then transported from the inert gas pipeline network to various usage points through VMP. Its core technology lies in the optional steel cylinder heating device and J-T heater according to the process flow requirements, which can be independently heated and controlled in one and two stages, stably conveying inert gas for large capacity packaging (Y bottles, T bottles, ISO Tank, torpedo tube car)

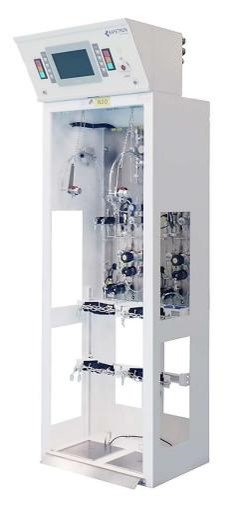

GR Auto Configuration: Gas Cylinder / BSGR → Auto GR → VMP
Manual Configuration: Gas Cylinder / BSGR → Manual GR → VMP
GR products are mainly used in various inert gas conveying systems, which are open gas cylinder placement and gas conveying systems. It can achieve extremely high safety, stability, controllability, etc. in the gas supply process. Its core technology lies in meeting the process flow requirements, among which AUTO GR adopts a microcontroller PCB design control, equipped with a pressure reducing device, standard functions such as pressure detection, automatic switching, automatic blowing, leakage detection, emergency cutting, etc., to stably, safely, and cleanly transport special gases.

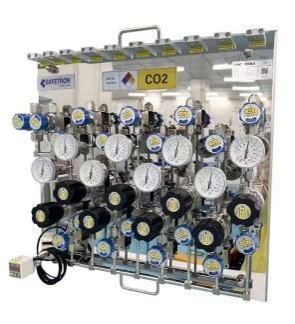

VMP Configuration: GR → VMP → Hook Up
VMP products are mainly designed for gas source diversion and are suitable for inert gas supply equipment with multiple gas sources. During the transportation process, the purity and water oxygen content of the gas source are basically not affected. VMP adopts a three-way valve and four-way valve design, making the cabinet more compact, reducing the occupied area, and more conducive to overall planning.
VS Configuration: Gas Supply End → VS → User End
VS (GAS PANEL) The product is mainly used for bulk gas control terminals and gas panels for single point inert gas transportation. VS is a specialized facility that integrates components such as shut-off valves, pressure regulating valves, filters, and pressure gauges.
Whether you need product information, technical support, or a custom solution, our team is just a message away. Reach out to us for prompt, professional assistance – because at AMS Worldwide, your success is our priority.
